PRODUCT DETAIL
For Bending Thicker Plastics.

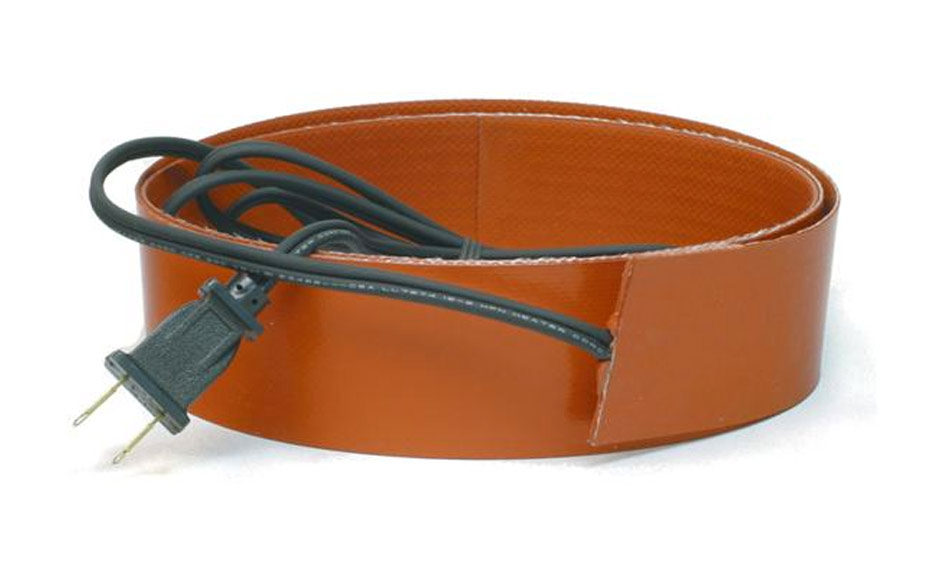

Our wide heat Silicone Heaters give you the ability to heat thermoplastic material up to 6" wide. Ideal for material up to 1½" thick or thin material that requires a wide radius. The flexibility of the Silicone Heaters is ideal for heating rod or tubing. Simply bend or wrap the heater to fit your material. Silicone Heaters may be used with our power controller allowing you to fine tune the working temperature to your exact needs. These heaters are 5 watts per square inch to a maximum surface temperature of 475°.
Specifications: All Heaters are 120 Volts, 60 Hz.
FOB CA.
Click on the Technical Data tab below to see available sizes.
| Click on our Technical Data and Additional Equipment Tabs above for more information. |
Custom Lengths Available.
| Model | 4101 | 4102 | 4103 | 4104 | 4201 | 4202 | 4251 | 4252 | 4253 | 4254 | 4301 | 4305 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Heated Area | 1" x 29" | 2" x 29" | 4" x 29" | 6" x 29" | 1" x 41" | 2" x 41" | 1" x 53" | 2" x 53" | 4" x 53" | 6" x 53" | 1" x 101" | 1" x 125" |
| Amps/ Watts | 1.20/145 | 2.42/290 | 4.83/580 | 7.25/870 | 1.71/205 | 3.42/410 | 2.17/265 | 4.41/530 | 8.8/1060 | 13.25/1590 | 4.20/505 | 502/625 |
| Max. Temp. | 475° F | 475° F | 475° F | 475° F | 475° F | 475° F | 475° F | 475° F | 475° F | 475° F | 475° F | 475° F |
