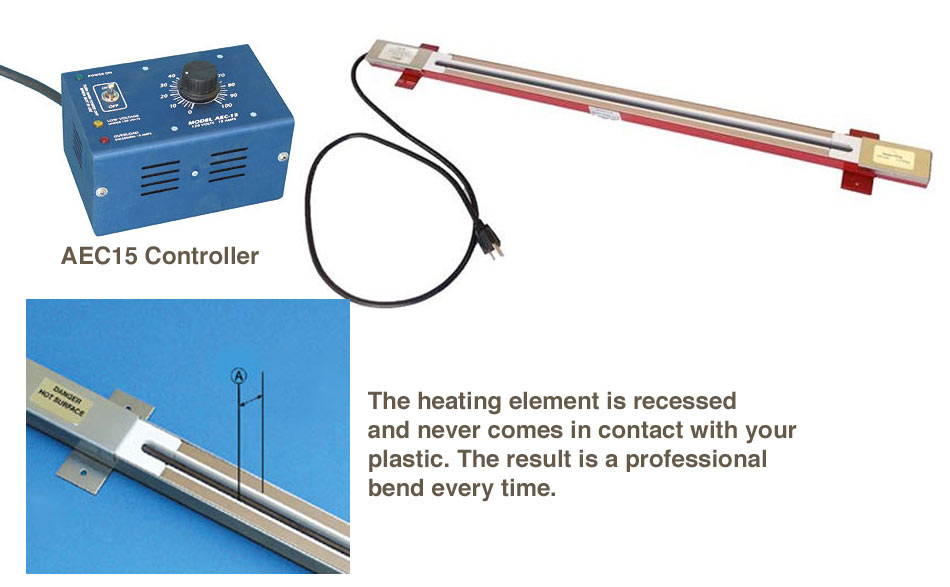

Bend plastic without contacting the heat source. 120V or 240V, sizes 2', 4', 6' and 8'. Ideal for making single bends or making your own system. The heating element is recessed and never comes in contact with your plastic. The result is a professional bend every time.

These heating trays have been exclusively designed to give constant professional bends while working with all types of thermoplastic materials. Acrylics, ABS, PVC, CPVC, Polypropylene, Polyethylene, Polycarbonate and many more. They are essentially used for straight line bends or folds, capable of heating up to 1/2" thick material. All trays come with a standard 120-volt pigtail and are ready for operation.

Multiple units may be purchased for multiple bends or to build your own system. The temperature of two heating trays can be controlled with the AEC-15 Power Control

All Free-Standing Heating Trays run on standard 120-volts and have a maximum operating temperature of 800°F. Temperature can be adjusted using the PC power control. FS96 Shipping: We will contact you with shipping cost information on this item.

AEC 15 Power Controller: Solid state microprocessor On/Off switch, Power indicator light, Power adjustment knob, Low voltage indicator, Dual outlet 120 volts, 15 amps.

This robust power controller uses a digital microprocessor for overload protection. If the controller senses an overload, it will automatically limit the current flow to 15 amps and warn you with the indicator light. This unit also has a low voltage indicator light that tells you if your supply voltage drops below 100 volts. Comes with an anodized aluminum housing and internal cooling fan. The AEC-15 can also be used for some hot wire applications.

Click on below links to order:

120V Heat Trays
240V Heat Trays

Click on Technical Data tab below for sizes and options.

Features

Technical Data

Additional Equipment

• Click on our Technical Data and Additional Equipment Tabs above for more information.

• Model 120V	FS24	FS48	FS48-240	FS48-4	FS48-4240
  Heated Width/Length	1/2" x 24"	1/2" x 48"	½" x 48"	1/4" x 48"	1/4" x 48"
  Total Length of Tray	35"	59"	59"	59"	59"
  Watts/Amps	220/1.8	430/3.6	430/1.8	330/2.75	330/1.4
  "A" Dimension	½"	½"	½"	¼"	¼"
  Model	FS72	FS96	FS48W2	FS3-48	FS3-48-4
  Heated Width/Length	½" x 72"	½" x 96"	2" x 48"	*1/2 x 48"	* 1/4 x 48"
  Total Length of Tray	83"	107"	59"	59"	59"
  Watts/Amps	525/4.4	800/6.7	860/7.2	860/7.2	660/5.40
  "A" Dimension	½"	½"	2"	½"	¼"
  				Dual Element	Dual Element
  Model	FS48W1	FS48-8
  Heated Width/Length	1"x48"	3/8"x48"
  Total Length of Tray	59"	59"
  Watts/Amps	860/7.2	350/3.0
  "A" Dimension	1"	3/8"
  * 3 inch Wide Tray, Dual elements with 1" minimum center-to center on 1/2" elements and 3/4" minimum on 1/4" elements, for use where two bends are very close together. Custom Tray non returnable, you must specify distance between bends, Center to Center, mention when you order in the notes upon checkout.
  Replacement Elements
  Models:	FS-24: FM11008	FS-48: FM11007	FS48-4: FM11009	FS72: FM9958	FS96: FM11006
  FS48-240: FM11007-240	FS48W2: FM11007	FS3-48: FM11007	FS3-48-4: FM11009	FS48W1: FM11007	FS48-8: FM11003
  FS48-4240: FM11009-240

  Model 240V	FS48-240	FS48-4240
  Heated Width/Length	1/2" x 48"	1/4" x 48"
  Total Length of Tray	59"	59"
  Watts/Amps	430/1.8	330/1.4
  "A" Dimension	1/2"	1/2"
  See accessory items for Replacement Element
  Model	FM11007-240	FM11009-240

  18TBP 240V Power Controller
  Max. Amps	10
  Max. Rated Voltage	2.4 KVA
  Fuse Number	49C25-10
  Dimension & Weight	3.2(H) x 2.5(W) x 2.5(D)

• Some additional items include:

  Replacement Elements ($46.00 and up).
  AEC 15 Controller ($249.00).
