Without Pnematic Top Frame.

These tables have adjustable stops with a scale calibrated in either millimeters or inches. The height and temperature of the heating wires can be independently and continuous adjusted. The reflectors are mutual and easily adjustable. Special made fixtures, under frames and foil bending profiles are available as accessories.

2 and 4 foot tables usually sold in 110V, but are available in 220V. Please specify voltage.

Please contact us for shipping costs. Due to the Covid-19 virus, costs and leads times are affected. 110V or 220V, specify when ordering.

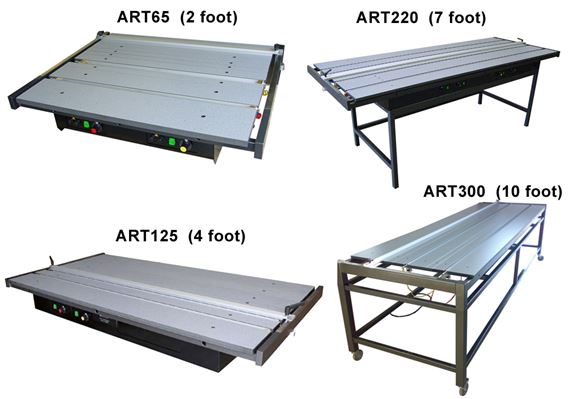

The ART65 (2') and ART152 (4'), ART220 (7'), ART300 (10')have adjustable stops with a scale calibrated in either millimeters or inches.

The height and temperature of the heating wires can be independently and continuous adjusted. The reflectors are easily adjustable. Special made fixtures, under frames and foil bending profiles are available as accessories.

Read or Brochure for more information on this product, please Click Here.
FOB CA

Features

Technical Data

Additional Equipment

• Click on our Technical Data and Additional Equipment Tabs above for more information.

• Standard construction	EV regulating unit = to control 1 wire. DB regulating unit = to control 1 or 2 wires. 2x EV regulating unit and 2x under reflector
  Working length	65, 125, / 2, 4, 7 10 ft
  Heating Under Sheet thickness	2 and 4 ', 7', 10' Tables: 0.4 - 6 mm.
  Distance between reflectors (center to center)	Tables: 15 – 510 mm (.6 – 20 in).
  Weight	70 kg plus(154 plus lbs)
  Connection voltage	110V, or 220 - 230 Volt.

• Some additional items include:

  A range of reflectors are available with a variety in length, width and multiple heating-wires. Reflectors top and bottom up to 250 mm. in width and with 12 wires each have been made. Our standard multiple wire reflectors with 2 to 4 wires and 30 to 120 mm. in width are capable of bending plastic sheets up to 25 mm. thickness and ideal for bending a big radius.

  Foil Profiles: Thin sheets (0.3 to 1.5 mm.) can be bent straight with no distortion with our teflon coated foil bending profiles. These profiles are also perfect for bending Forex or foamed PVC to prevent ‘ears’ on the sides of the bends so cutting of these deformed sides after bending is not needed. The foil bending profiles are also available with a double contact-back to make 2 very close bends possible. A range of back-sizes are available (from 2 to 10 mm. width). Our standard lengths: 50, 65.

  Regulating Unit: Our plastic bending machines are standard constructed to be easily extended with extra regulating units at any time. Double regulating units are also available for continuously variable adjusting the temperature of 2 heating wires.
