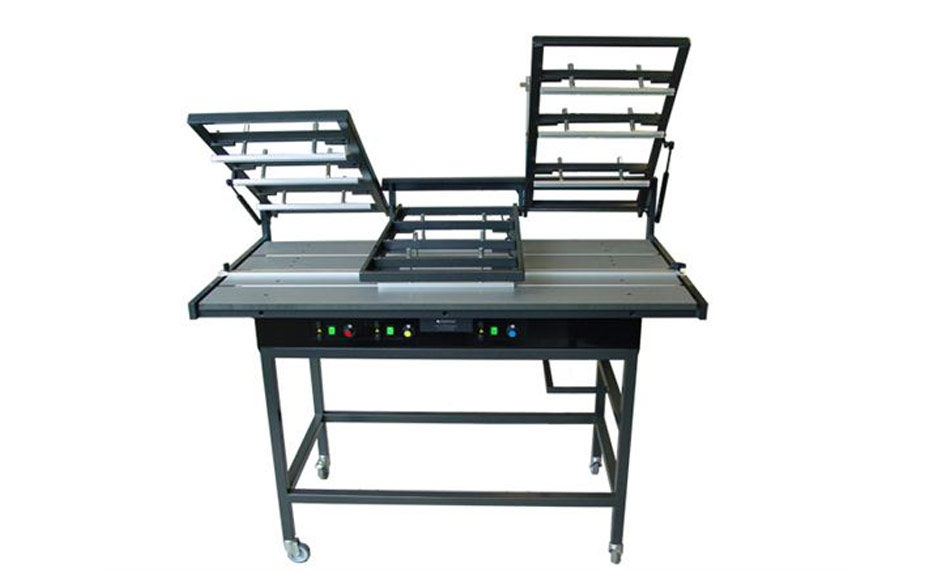

Very productive Shannon bending machines, standard equipped with under heating and consisting of quickly adjustable profiles with a heating wire (15 mm. or 30 mm. wide). Freight Delivery Included! The heating wires can be adjusted in height. The temperature of the heating wires are controlled (continuously variable) with an EV or DB regulating unit:

-EV Regulating unit = Controls one heating wire, 110 or 220 V
-DB Regulating unit = Controls two heating wires, 110 or 220 V

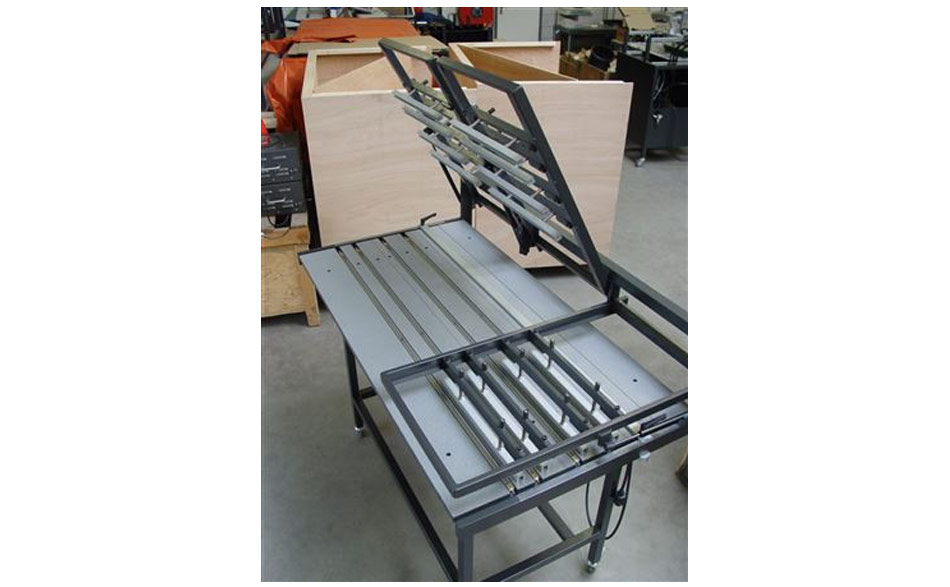

The manual controlled upper frame consist of 3 parts and is provided with multiple adjustable clamping bars. Durable sliding panels of the working surface can be brought into place or completely detached with ease. A parallel stop is supplied with Inch and Millimeter scales. The machine is modular constructed and internally prepared to easily be expanded, with extra profiles and/or regulating units.

Read our Brochure for more information on this product, please Click Here.
FOB CA

Features

Technical Data

Additional Equipment

• Click on our Technical Data and Additional Equipment Tabs above for more information.

• Working length:	135 cm / 4'5"
  Heating:	Upper
  Standard sheet thickness:	0.2 – 1.0 mm (.007-.039 in)
  Maximum sheet thickness:	1.5 mm (.059 in)
  Adjustable clamping bars:	One standard provided
  Angle setting:	0 - 180°
  Weight:	175 kg. (383 lbs)
  Air connection:	90 psi
  Connection voltage:	110V or 220 - 230 Volt
  CE Certified	Yes
  Lead Time	2-6 weeks

• Some additional items include:

  Teflon heating Sword 135cm $570 (Extra) (Available in 3mm to 10mm contact). Complete list of accessories are shown at bottom of page at this link.
