Heats and Automatically makes single or double bends in thin plastics (Line Bending)

Please contact us for shipping costs. Due to the Covid-19 virus, costs and leads times are affected. 110V or 220V specify when ordering

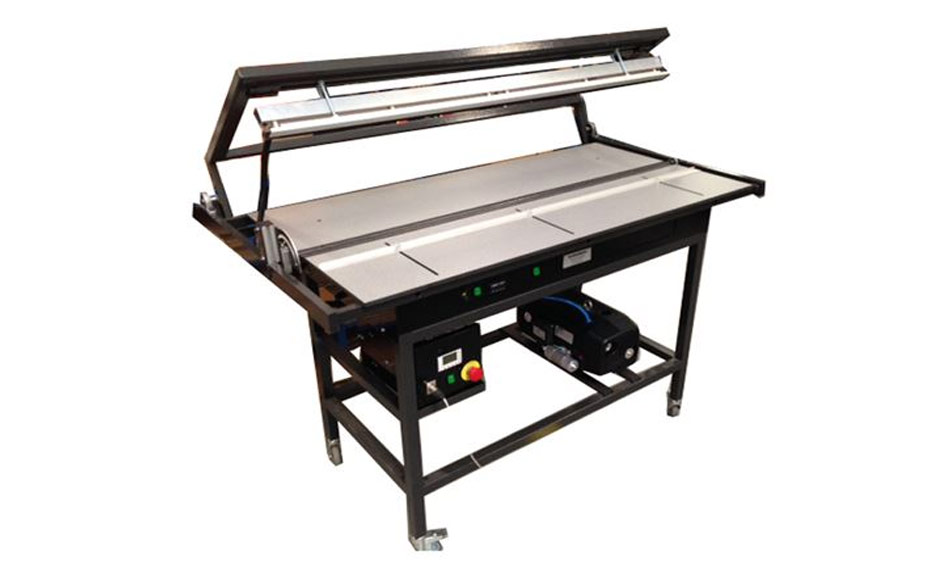

AFF135/AFF135-2 are easy-to-operate and very productive automatic bending machines for thin plastic sheets. Bend one sheet up to 4'5" (135 cm) or multiple smaller sheets in a single pass. These machines include an accurate, adjustable electronic heating element that can also be controlled in contact-time. The material is heated by a teflon-coated sword, which can be easily replaced with different sizes, so that the radius can be changed accordingly. A foot switch controls the heating element.

The upper frame has an adjustable clamping bar. The vacuum system, holds sheets into place during heating, bending and cooling. During the cooling process, cold air is blown onto the bent parts to increase the production speed. Set the angle of the bend with the protractor. The durable Trespa® table top is provided with an adjustable stop. Includes one Teflon Heating Sword with 3mm contact.

The under frame with wheels and brakes is included.

Single Bend Machine AFF135
Double Bend Machine AFF135-2

Read our Brochure for more information on this product, please Click Here.
FOB CA

Features

Technical Data

Additional Equipment

• Freight Delivery Included!

  Click on our Technical Data and Additional Equipment Tabs above for more information.

• Working length:	135 cm / 4'5"
  Heating:	Upper
  Standard sheet thickness:	0.2 – 1.0 mm (.007-.039 in)
  Maximum sheet thickness:	1.5 mm (.059 in)
  Adjustable clamping bars:	One standard provided
  Angle setting:	0 - 180°
  Weight:	175 kg. (383 lbs)
  Air connection:	90 psi
  Connection voltage:	110V or 220 - 230 Volt
  CE Certified	Yes
  Lead Time	2-6 weeks

• Some additional items include:

  Teflon heating Sword 135cm $570 (Extra) (Available in 3mm to 10mm contact). Complete list of accessories are shown at bottom of page at this link.
